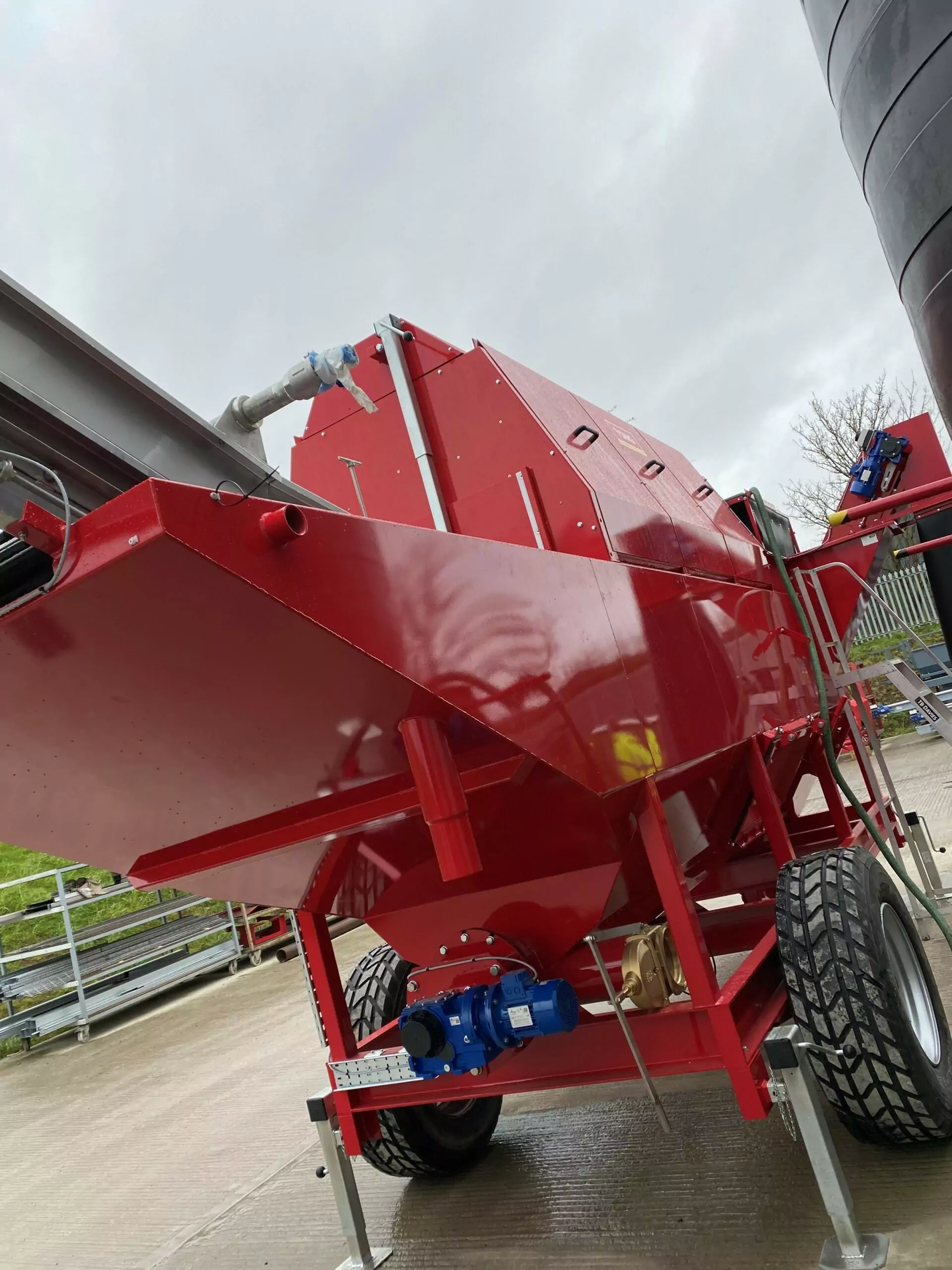

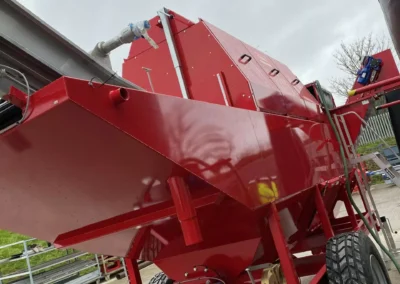

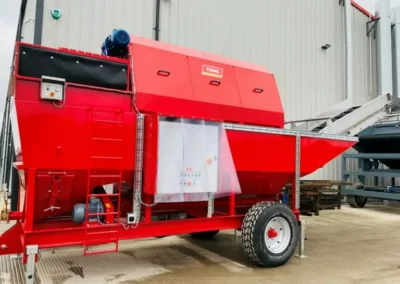

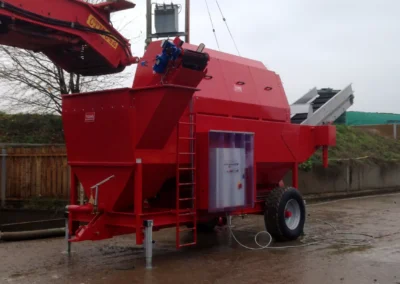

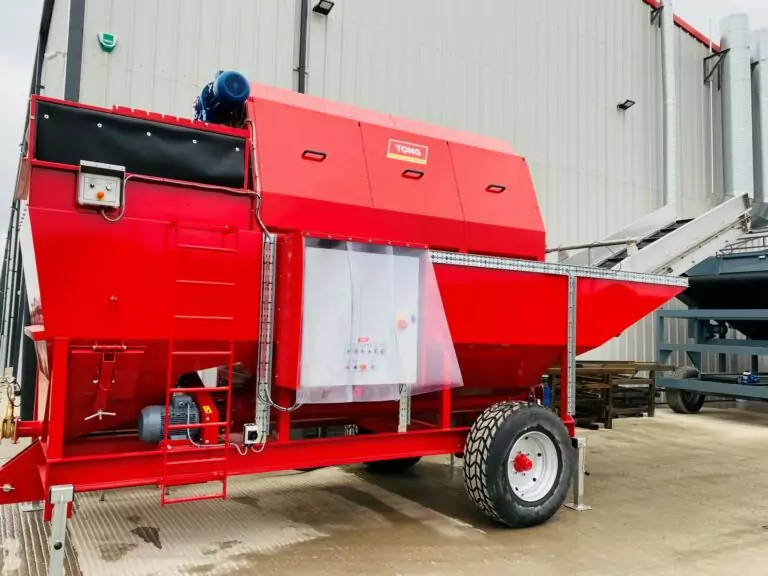

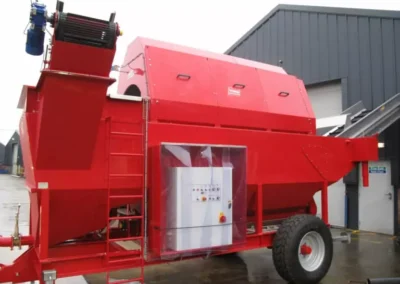

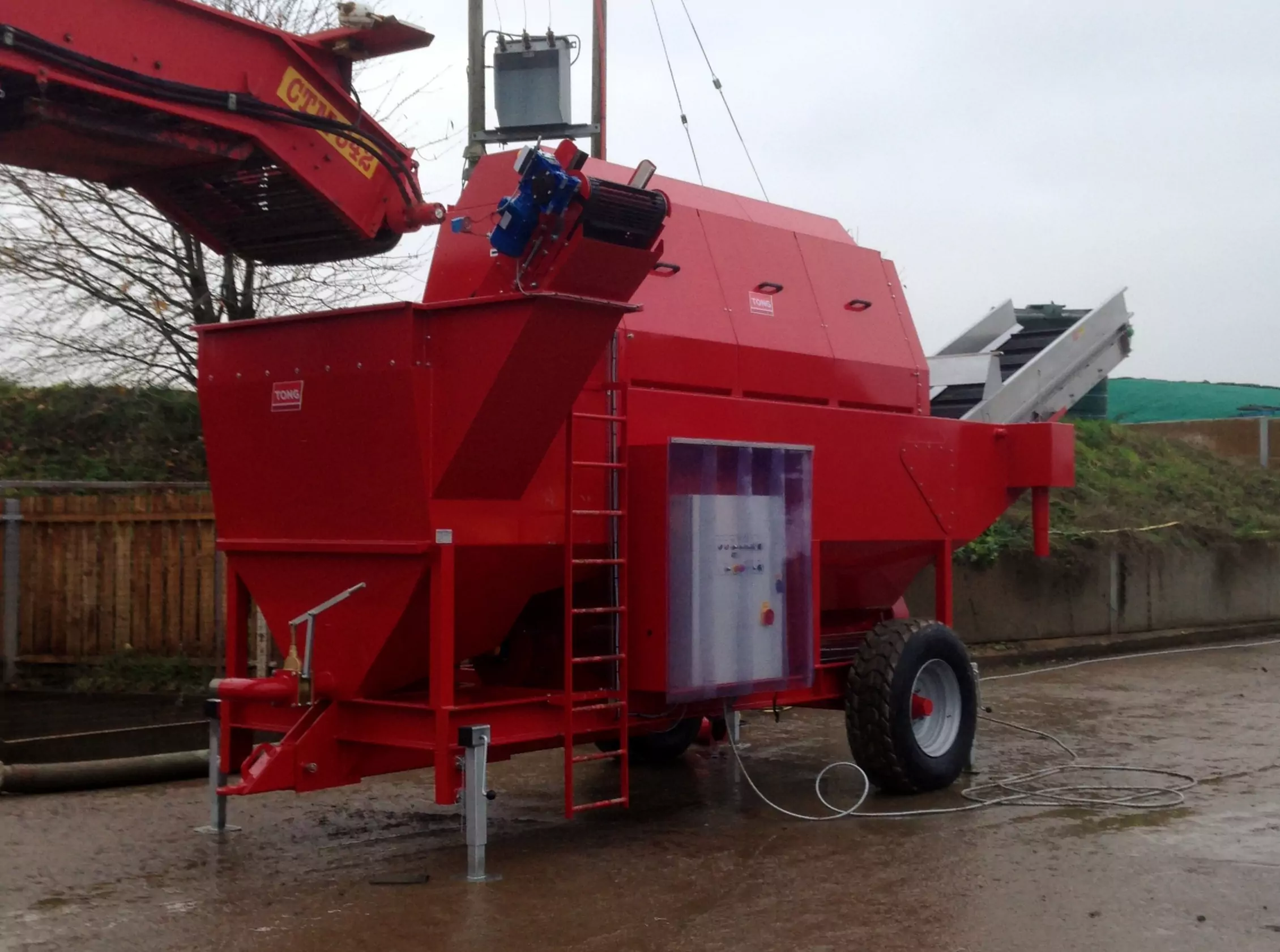

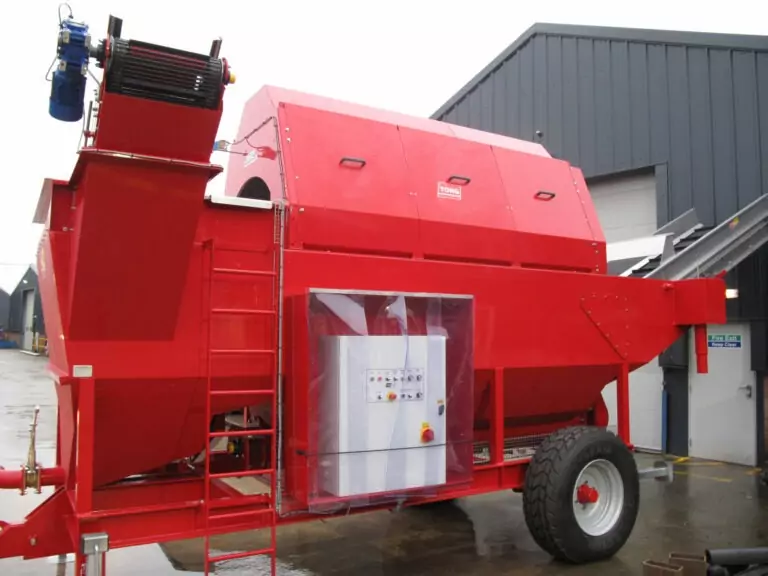

Mobile Washing line for Potato, Carrot, Celeriac & Sugar Beet.

OVERVIEW

Farmers and growers throughout Europe are increasingly looking for alternative markets for their Potato, Carrot & Sugar beet crop. Tong has designed a dedicated range of heavy duty sugar beet washing equipment for efficient washingdestoning and loading of Potato, Carrot & Sugar beet.

Tong’s mobile washing equipment is ideal for use at multiple sites, to wash and remove stones from the crop at high speed, helping to increase daily throughputs whilst taking the labour out of stone removal.

Designed and built using uprated components and heavy duty fabrication, Tong’s mobile washing equipment offer excellent performance in the most demanding sugar beet handling situations.

Manufactured in a range of standard models with barrel lengths from 3 to 5m long and a choice of 1200mm or 1500mm diameters. Tong offers a washing solution for all needs. Either Potato, Carrot, Sugar beet or Celeriac.

Built to perform under the most demanding washing and destoning situations, Tong’s mobile washing line are built to suit all requirements from 30 to 60 tonnes per hour.

VIDEO

SPECIFICATIONS

FEATURES

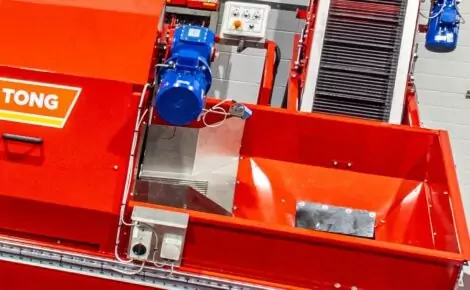

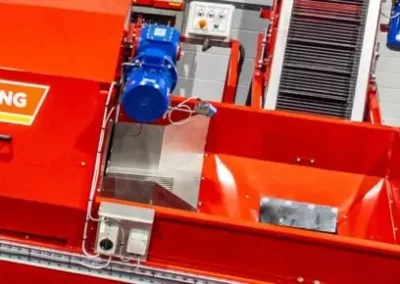

INTEGRATED DESTONER

As the sugar beet is fed into the barrel washer, it is met with a reinforced infeed chute for handling the tough crop at high speeds. Crop falls into the close-coupled destoner’s water tank where the sugar beet floats into the washer’s barrel. Stones are effectively removed as they sink to the bottom of the destoner tank, and they are then removed by a heavy duty web elevator.

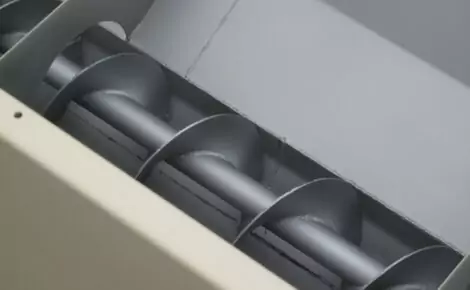

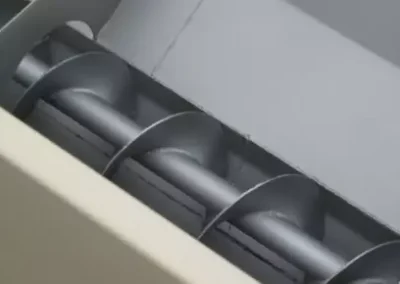

BUILT-IN AUGER

Tong’s sugar beet washing equipment is fitted with a heavy duty auger inside the barrel tank, for the effective removal of soil that builds up in the tank during the washing process. A pneumatically operated sluice valve is also fitted to the barrel tank for easy discharge of dirty water.

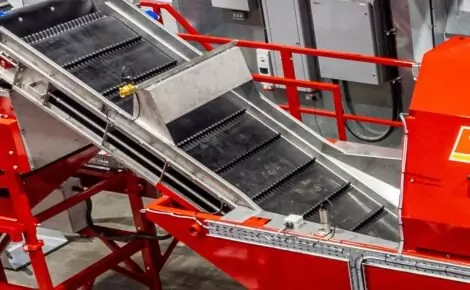

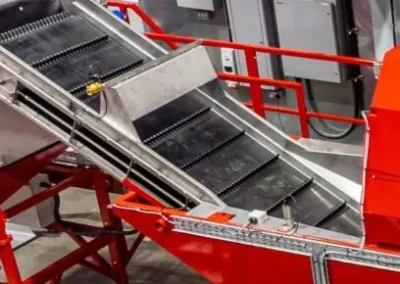

FINAL RINSE ELEVATOR

The mobile sugar beet washer is built with a robust crop discharge elevator. With a durable, heavy duty ‘door-stop’ style rubber belt, for gentle handling of crop whilst allowing water to drain back into the washer tank. An efficiently powerful final rinse bar is fitted above the discharge elevator to ensure optimum crop cleaning results. Water spray jets give crop a final rinse as it comes out of the barrel for an enhanced washed finish.
